Problem with demolishing Light fixtures

Bruce Madsen from our SF office highlighted this problem recently. It relates to issues when demolishing light fixtures when using phasing in Revit.

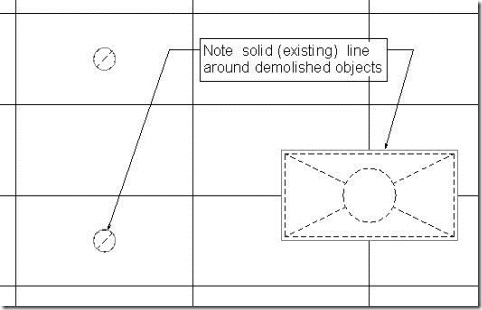

THE PROBLEM

clip_image002

THE CAUSE

Since the ceiling is NOT demolished, the light-fixture hole edges remain as existing

THE WORK-AROUND

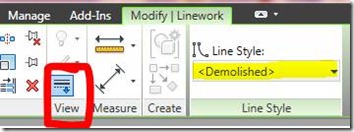

Use the Linework tool to change the lines from Solid to Demolished

clip_image004
