Copying & Pasting Objects between families and projects

Have you ever wanted to copy and paste objects between families and projects? Yongmoo Hur BIM manager for our Hong Kong explains more…..

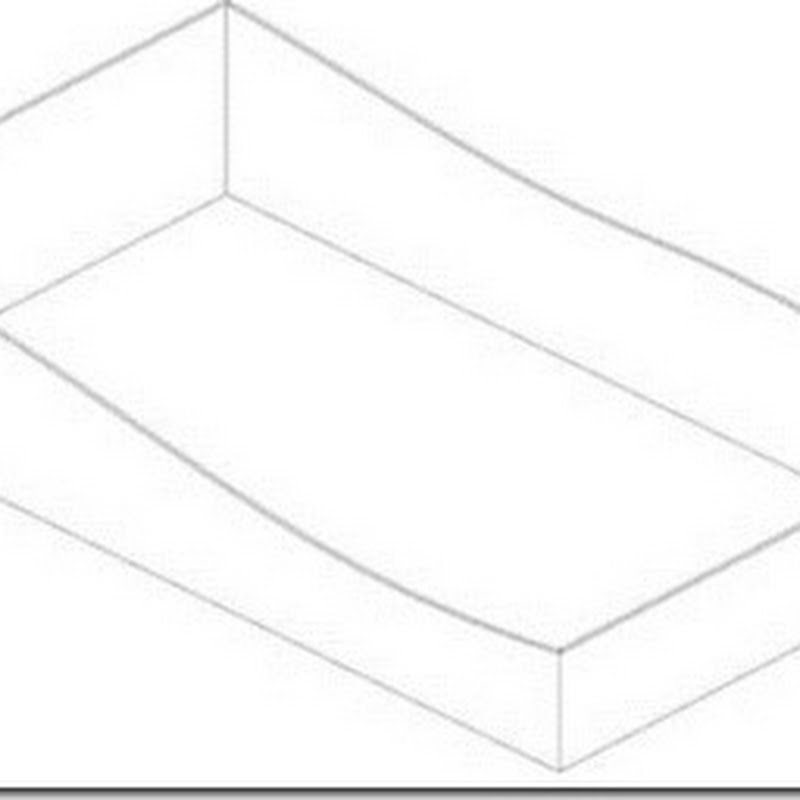

Assume that you started working in a project and need to model roof/exterior skin on the walls below using ‘Conceptual Mass’.

clip_image001

You may want to bring the walls into the Conceptual Mass, but you cannot do it in current version of Revit. Basically Revit does not allow us to copy objects between projects and families with some exceptions with lines. Most importantly, you can NOT copy anything directly onto ‘conceptual mass family’. You will get error messages below.

clip_image003

clip_image005

True - You can’t copy between families and projects. But you CAN copy between families. We can use this.

1. Click ‘In-Place Mass’ to start ‘In-place Mass family’

clip_image006

2. Using ‘Reference or Model line’ + ‘Pick Lines’, Trace profiles.

clip_image007

3. Before you ‘Finish Mass’, Pick the lines and paste it onto ‘Conceptual mass’. Because you are inside of an in-place family, you will be able to copy lines to Conceptual family template.

clip_image008

Now you can model objects in the Conceptual Mass family!

You can also model a mass, and you will be able to copy and paste the mass within edit mode (again, BEFORE you ‘Finish Mass’)

For those who are more interested, below are further findings about behaviour on that subject

  • You can NOT copy and paste walls directly into any family templates.
  • Linking Revit will NOT work. The ‘Link Revit’ button becomes greyed out.
  • You can NOT copy model lines to the ‘Conceptual mass family’ template.
  • You CAN copy model lines to regular family templates. Trace profile using model lines and copy and paste onto family templates- generic model, for instance. And you CAN load this regular family into Conceptual Mass Family. It would be great if we can get rid of this extra step though.
  • You CAN copy detail lines to Profile family templates. -- Trace profile using detail lines and copy and paste onto the ‘Profile family template’. But you can NOT load this into ‘Conceptual Mass’

3 comments:

Vincent said...

What would be impressive is model in conceptual mass and bring the geometry into a generic family.

William Ruffenach said...

Vincent I know this is a bit late to comment but ill do it anyway. Im not sure if your aware of it yet but there is a new family type called generic model adaptive. This is a mass family type that will allow you to change the category to generic model and more. C:\ProgramData\Autodesk\RAC 2012\Family Templates\English_I
same location for 2013

William Ruffenach said...

Vincent I know this is a bit late to comment but ill do it anyway. Im not sure if your aware of it yet but there is a new family type called generic model adaptive. This is a mass family type that will allow you to change the category to generic model and more. C:\ProgramData\Autodesk\RAC 2012\Family Templates\English_I
same location for 2013
