How to use Revits Underlay tools

Bruce Madsen, one of BIM managers for our San Francisco office says, when working in a reflected ceiling plan, it is helpful to know where the furniture occurs.

Revit provides UNDERLAY tools to make this easier.

  • You can work in the Ceiling Plan while viewing the Floor Plan as an Underlay.
  • NEW – You can work in the Floor Plan while viewing the Ceiling Plan as an Underlay.  (this can be useful for MEP tasks).

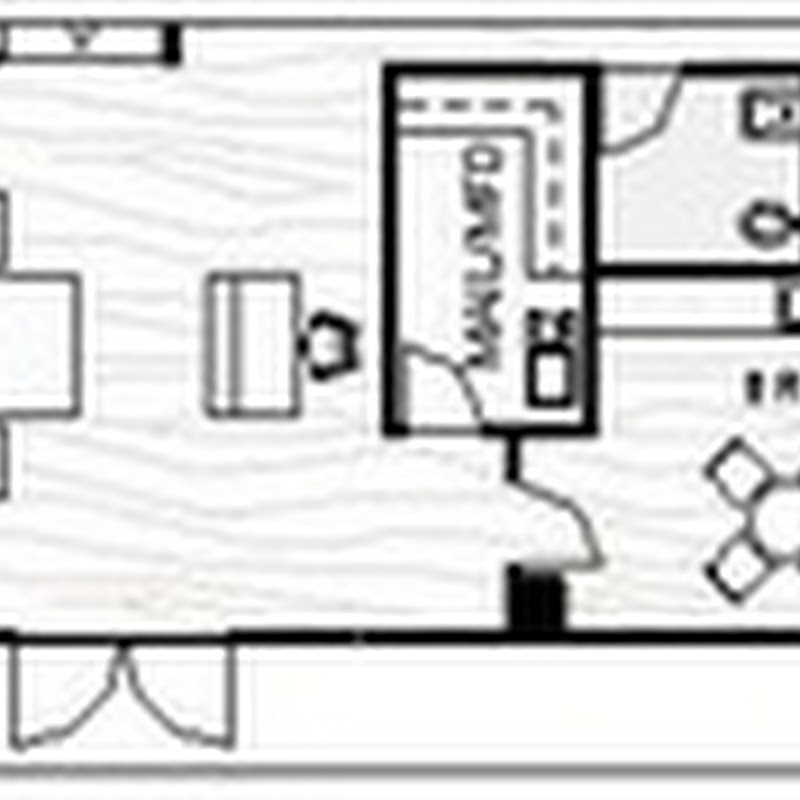

The examples below, show a floor plan and a reflected ceiling plan:-

clip_image002

clip_image004

To see the furniture in the RCP, turn on the UNDERLAY in the VIEW PROPERTIES, as shown below:-

clip_image006

clip_image007

  • What is new is that it is possible to see the Ceiling in a Plan view.

Turn on the UNDERLAY and change the UNDERLAY ORIENTATION from Plan to REFLECTED CEILING PLAN:-

clip_image009

clip_image010

· Note:  It is also possible to see an underlay from a level different from the current level, if needed.
