Friday, 31 July 2009

Understanding Hosted points in Revit Architecture 2010


Points are a great feature in Revit 2010. The following video is another extract from my HOK Revit 2010 massing class which explains the principles of points and how hosted points can be used to control geometric forms.

Thursday, 30 July 2009

Revit 2010 - MEP Coordination

Question from Bart V:
Does anyone have experience with Revit and MEP coordination....The issue is the same for more disciplines, but the lighting layout is a good example: we want to have ownership of the location, while the electrical engineer will be responsible for types, connections, etc.

Option 1: All fixtures will be in the architectural model, and the electrical engineer would connect to the fixtures through a linked file. Problem is that this is not possible… yet. Apparently the next version of Revit might. Secondly, if the link might be (temporarily) removed, what would this do to the connections in the electrical file?

Option 2a: All fixtures live in the electrical file, and we would dimension linked elements. This doesn’t work that well, assuming at some point the link might have to be removed, and all dimensions will be lost. Additionally, the fixture families might be too detailed for our use.

Option 2b: All fixtures live in the electrical file, and we would copy/ monitor all elements. I believe (after a quick test) that it is not possible to copy/ monitor anything but grids, levels, columns, walls, floors and openings.

Option 3: We would have a separate set of “dimension grids” that will allow us to show the desired dimension, but we have to move these elements manually as the fixtures are moved.

Solutions from Don R:

Revit Lighting Fixtures - It is suggested that your coordinate the layout of all light fixtures through your consultant and that the fixtures live exclusively in the MEP model. Most architects would cringe at the thought of this, but if coordinated with enough diligence is the better option.

This method actually solves a couple problems...
- There wouldn’t be two separate lighting layouts between the engineers and the architect (very common and always troublesome)
- The light fixture layout that displays on all sheets will be accurately coordinated with the IECC calculations that the engineer is required to provide

Keep in mind that in order for the engineers to accurately schedule and circuit the fixtures, they will have to exist in their design model and be controlled by them (manufacturer, wattages, bulbs, model numbers, etc.). It is common that light fixtures will require locale modifications in order to accommodate egress foot candle minimums and to stay under the IECC wattage requirements so it is best to give your engineer the right to make these types of adjustments so long as they keep you informed as to where and why they have to shift any light fixtures.

Dimensioning - I suggest you save dimensioning fixtures to the end or that you have your engineer provide basic dimensions under your guidance. In the old 2D mindset an engineer would never consider this, but given the new technologies where the building model and its dimensions are far more realistic and accurate in a Revit environment, you may find that your engineer may be willing to do this.

Copy Monitor Limitations - You CANNOT copy monitor light fixtures, nor can they copy monitor your plumbing fixtures.

Detail of Fixtures - In terms of the light fixtures being too detailed when provided from an engineer, I think you will find that engineers tend to avoid over detailing their graphics and that you will not have that issue. If you are concerned as to their graphical representation detail, discuss it with them and I’m sure you can work out a compromise.

Further HOK/ Industry / Revit MEP users comments and suggestions welcome!

Monday, 27 July 2009

Creating parametric forms using Revit Architecture 2010

complex para_mass

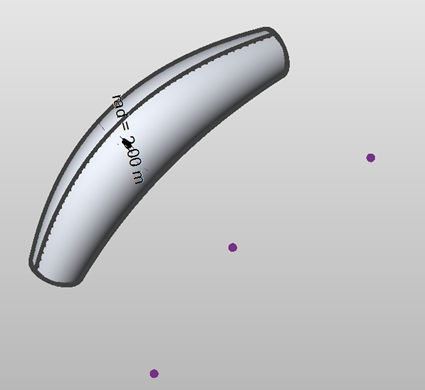

Apart from the Ribbon interface, the major focus for the 2010 release of Revit Architecture are the new conceptual massing tools. The following video explains how to create a parametric freeform surface utilising the new conceptual massing tools and the new conceptual mass design environment. This is based on a short extract from a class which I ran for HOK staff. Hopefully, you will find it useful.
