Merging two workset projects

This a useful tip from Lee Miller, HOK Firmwide Revit CAD manager. The question is, "How do I merge two workset projects together?"

Here's what to to; the key to this process, is preparation.

Prepare the models

First make backups of all your work.
Choose the smaller, least complex of the two models, and purge unused.

Get the model as lean as possible.
Determine what drafting elements will need to be preserved


The Binding process

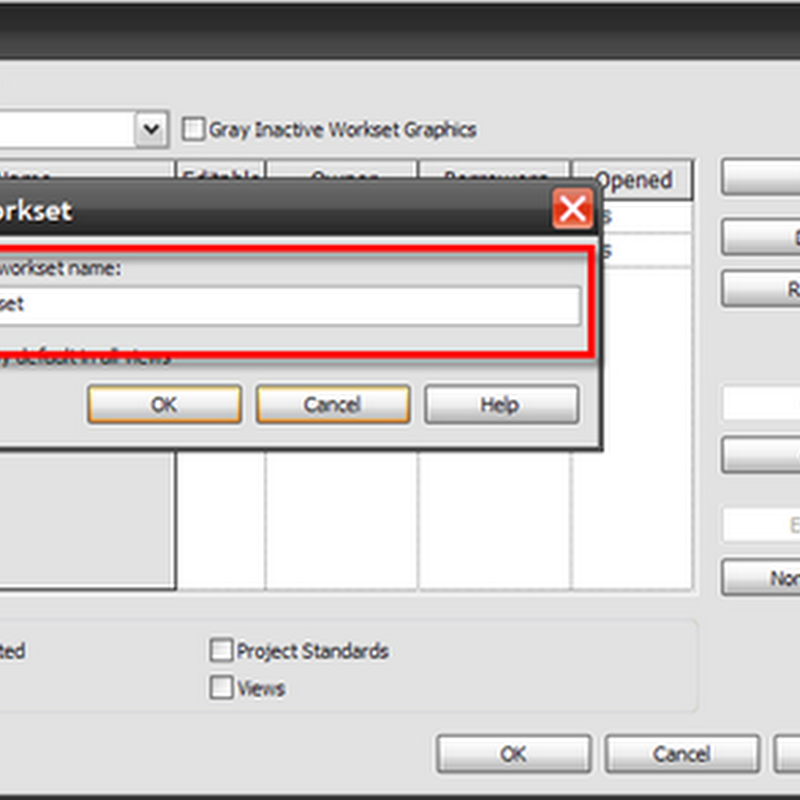

In the model which you will bind your project into, create a new temporary workset.  This will be the workset that the bound elements will be dump into.

bind workset
Create some new worksets, i.e. core etc.  These are worksets you will use to transition objects into.
Select the linked project and choose bind from the options bar.

Decide whether you need to include Attached Details, Levels,Grids....

A message will the appear warning you about binding a linked file. Just choose the remove link button.


It may take some time for Revit to complete this exercise! Depending on the size of your project.
Once the link has been bound, this bound link will be a group. You can then choose to ungroup and the start to transition objects to previously created New worksets.
Finally, recreate views, import sheets, etc as required.
